学习在spring-aop中挖掘新反序列化gadget-chain

  • ~15.17K 字
  • 次阅读

最近发布的一篇文章，感觉很有意思！

环境引入

这篇文章发布在了微信公众号银针安全上，文章链接如下：link

简单来说就是通过Aspectjweaver内的一个类能够进行反射调用任意方法来实现的。

原来的aspectjweaver的反序列化是通过rg.aspectj.weaver.tools.cache.SimpleCache$StoreableCachingMap来实现任意文件写的，这个感觉比较鸡肋，原先写的分析和利用在AspectJWeaver反序列化 | Err0r233这里有所提及，可以通过反序列化写恶意类到classpath下，然后通过反序列化加载恶意类，前提是你得知道classpath的路径。所以分析来看上面写的比较鸡肋

链子探索

现在发掘了一条新路线，还是利用aspectjweaver，只不过类变成了org.springframework.aop.aspectj.AbstractAspectJAdvice，这个类有一个反射调用任意方法的函数invokeAdviceMethodWithGivenArgs(Object[] args)，代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
protected Object invokeAdviceMethodWithGivenArgs(Object[] args) throws Throwable {
        Object[] actualArgs = args;
        if (this.aspectJAdviceMethod.getParameterCount() == 0) {
            actualArgs = null;
        }

        try {
            ReflectionUtils.makeAccessible(this.aspectJAdviceMethod);
            return this.aspectJAdviceMethod.invoke(this.aspectInstanceFactory.getAspectInstance(), actualArgs);
        } catch (IllegalArgumentException var4) {
            throw new AopInvocationException("Mismatch on arguments to advice method [" + this.aspectJAdviceMethod + "]; pointcut expression [" + this.pointcut.getPointcutExpression() + "]", var4);
        } catch (InvocationTargetException var5) {
            throw var5.getTargetException();
        }
    }

其中从args调取actualArgs，然后调用protected transient Method aspectJAdviceMethod的invoke。虽然这个method并不能够被反序列化，但是可以看到下面的readObject函数：

1
2
3
4
5
6
7
8
9
private void readObject(ObjectInputStream inputStream) throws IOException, ClassNotFoundException {
        inputStream.defaultReadObject();

        try {
            this.aspectJAdviceMethod = this.declaringClass.getMethod(this.methodName, this.parameterTypes);
        } catch (NoSuchMethodException var3) {
            throw new IllegalStateException("Failed to find advice method on deserialization", var3);
        }
    }

通过readObject能够对asjectJAdviceMethod重新进行赋值。对于一个反射调用的方法，需要Method、Object、args这三要素，因此姑且解决了Method的问题。接下来由于args是我们传入的，目前虽然不清楚这个args是否可控，但是我们可以对该场景做一个简化，也就是先暂时假设args是可控的。因此就剩最后一个Object了

回看invokeAdviceMethodWithGivenArgs最后的invoke，由于method.invoke的第一个参数就是object，由此可以得到这个方法的invoke调用的object是来自于this.aspectInstanceFactory.getAspectInstance()的，跟进这个方法，发现他其实是一个接口：

1
2
3
4
5
6
7
8
9
10
11
12
package org.springframework.aop.aspectj;

import org.springframework.core.Ordered;
import org.springframework.lang.Nullable;

public interface AspectInstanceFactory extends Ordered {
    Object getAspectInstance();

    @Nullable
    ClassLoader getAspectClassLoader();
}

因此我们需要找到一个实现AspectInstanceFactory的类，并且还需要可序列化(继承Serializable)

这里的SingletonAspectInstanceFactory就实现了我们上面的两个要求

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
/*
 * Copyright 2002-2015 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      https://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.aop.aspectj;

import java.io.Serializable;

import org.springframework.core.Ordered;
import org.springframework.lang.Nullable;
import org.springframework.util.Assert;

/**
 * Implementation of {@link AspectInstanceFactory} that is backed by a
 * specified singleton object, returning the same instance for every
 * {@link #getAspectInstance()} call.
 *
 * @author Rod Johnson
 * @author Juergen Hoeller
 * @since 2.0
 * @see SimpleAspectInstanceFactory
 */
@SuppressWarnings("serial")
public class SingletonAspectInstanceFactory implements AspectInstanceFactory, Serializable {

	private final Object aspectInstance;


	/**
	 * Create a new SingletonAspectInstanceFactory for the given aspect instance.
	 * @param aspectInstance the singleton aspect instance
	 */
	public SingletonAspectInstanceFactory(Object aspectInstance) {
		Assert.notNull(aspectInstance, "Aspect instance must not be null");
		this.aspectInstance = aspectInstance;
	}


	@Override
	public final Object getAspectInstance() {
		return this.aspectInstance;
	}

	@Override
	@Nullable
	public ClassLoader getAspectClassLoader() {
		return this.aspectInstance.getClass().getClassLoader();
	}

	/**
	 * Determine the order for this factory's aspect instance,
	 * either an instance-specific order expressed through implementing
	 * the {@link org.springframework.core.Ordered} interface,
	 * or a fallback order.
	 * @see org.springframework.core.Ordered
	 * @see #getOrderForAspectClass
	 */
	@Override
	public int getOrder() {
		if (this.aspectInstance instanceof Ordered) {
			return ((Ordered) this.aspectInstance).getOrder();
		}
		return getOrderForAspectClass(this.aspectInstance.getClass());
	}

	/**
	 * Determine a fallback order for the case that the aspect instance
	 * does not express an instance-specific order through implementing
	 * the {@link org.springframework.core.Ordered} interface.
	 * <p>The default implementation simply returns {@code Ordered.LOWEST_PRECEDENCE}.
	 * @param aspectClass the aspect class
	 */
	protected int getOrderForAspectClass(Class<?> aspectClass) {
		return Ordered.LOWEST_PRECEDENCE;
	}

}

对该类内的invokeAdviceMethodWithGivenArgs进行跟踪，找到invokeAdviceMethod->invokeAdviceMethodWithGivenArgs，虽然这个方法有重构，但是无论跟踪哪一个重构都会找到类似的AspectJ?????Advice，从而找到org.springframework.aop.framework.ReflectiveMethodInvocation.proceed()，大致的调用链如下，自己找的话也很简单，直接alt+f7来找用法即可：

1
2
3
4
org.springframework.aop.framework.ReflectiveMethodInvocation#proceed->
org.springframework.aop.aspectj.AspectJxxxAdvice#invoke->
org.springframework.aop.aspectj.AbstractAspectJAdvice#invokeAdviceMethod->
org.springframework.aop.aspectj.AbstractAspectJAdvice#invokeAdviceMethodWithGivenArgs

该proceed方法如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
@Override
	@Nullable
	public Object proceed() throws Throwable {
		// We start with an index of -1 and increment early.
		if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
			return invokeJoinpoint();
		}

		Object interceptorOrInterceptionAdvice =
				this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
		if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
			// Evaluate dynamic method matcher here: static part will already have
			// been evaluated and found to match.
			InterceptorAndDynamicMethodMatcher dm =
					(InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
			Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
			if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
				return dm.interceptor.invoke(this);
			}
			else {
				// Dynamic matching failed.
				// Skip this interceptor and invoke the next in the chain.
				return proceed();
			}
		}
		else {
			// It's an interceptor, so we just invoke it: The pointcut will have
			// been evaluated statically before this object was constructed.
			return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
		}
	}

一行行看吧，首先是下标到最后的时候就结束

然后获取interceptorOrInterceptionAdvice，然后对它进行判断，如果它是InterceptorAndDynamicMethodMatcher的实例就进入第一个分支。但实际上我们这个调用的链子来看，下雨不调用的应该是org.springframework.aop.aspectj.AspectJxxxAdvice，因此是一个进入else的状态(并不是class InterceptorAndDynamicMethodMatcher的实例)，因此会进入else的invoke，这样会省去进入if之后很多的判断等工作

接下来来看获取interceptorOrInterceptionAdvice的逻辑：

1
2
Object interceptorOrInterceptionAdvice =
      this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);

他从这个interceptorsAndDynamicMethodMatchers来获取，可以得到这个Matchers是一个List：

1
protected final List<?> interceptorsAndDynamicMethodMatchers;

List是可以被序列化的，而且this.currentInterceptorIndex是一个下标(int)，因此这个interceptorOrInterceptionAdvice也是我们可控的

接下来的问题来到了这个类本身，仔细观察可以发现这个类是没有继承Serializable接口的，因此这个类本身不能够被反序列化，因此我们得找到一个能够动态创建该ReflectiveMethodInvocation的方法，继续查找：

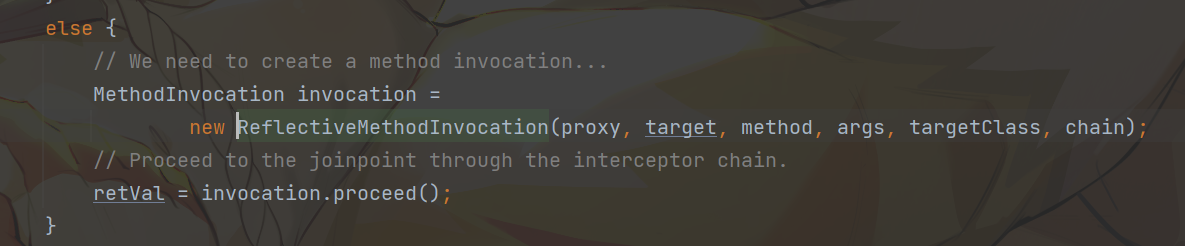

发现在org.springframework.aop.framework.JdkDynamicAopProxy里有创建：

该方法在创建完ReflectiveMethodInvocation后就立刻调用了proceed方法，完美符合要求，因此着重注意该构造方法：

1
2
MethodInvocation invocation =
						new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);

需要传入proxy、target、method、args、targetClass、chain

而chain对应这个Invocation里的interceptorsAndDynamicMethodMatchers，因此要着重注意chain该如何控制传入

因此我们现在需要：

  • 控制chain的传入。先通过JdkDynamicAopProxy.invoke()触发，然后创建ReflectiveMethodInvocation，然后传入一个包含有我们AspectJxxxAdvice的List(这里采用文章里的AspectJAroundAdvice)，最后通过chain来走到最后的反射调用

如何控制chain的输入

往回推，可以看到在JdkDynamicAopProxy的chain是这样被定义的：

1
List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

因此现在变成了要让this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass)能够返回一个List，并且这个List里有我们需要的对象

接下来分析这个方法：

1
2
3
4
5
6
7
8
9
10
public List<Object> getInterceptorsAndDynamicInterceptionAdvice(Method method, @Nullable Class<?> targetClass) {
		MethodCacheKey cacheKey = new MethodCacheKey(method);
		List<Object> cached = this.methodCache.get(cacheKey);
		if (cached == null) {
			cached = this.advisorChainFactory.getInterceptorsAndDynamicInterceptionAdvice(
					this, method, targetClass);
			this.methodCache.put(cacheKey, cached);
		}
		return cached;
	}

可以看到这个方法返回的cached有两种获取途径：

  • 若methodCache中有的话从methodCache中获取
  • 如果第一步中没有获取到的话，就会通过getInterceptorsAndDynamicInterceptionAdvice方法来获取

先看第一种获取途径，先查看这个methodCache：

1
private transient Map<MethodCacheKey, List<Object>> methodCache;

它本身是一个transient，也就是不能够被序列化的，而且readObject之后是一个初始化的ConcurrentHashMap，什么也做不了

1
2
3
4
5
6
7
private void readObject(ObjectInputStream ois) throws IOException, ClassNotFoundException {
		// Rely on default serialization; just initialize state after deserialization.
		ois.defaultReadObject();

		// Initialize transient fields.
		this.methodCache = new ConcurrentHashMap<>(32);
	}

因此第一条路只能放弃，只能够去看第二条途径，跟进getInterceptorsAndDynamicInterceptionAdvice会来到DefaultAdvisorChainFactory的getInterceptorsAndDynamicInterceptionAdvice。其中Advised config, Method method, @Nullable Class<?> targetClass这三个都是可控的。其中Advised config是一个AdvisedSupport实例(因为Advised查看可知它是一个接口)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
public List<Object> getInterceptorsAndDynamicInterceptionAdvice(
			Advised config, Method method, @Nullable Class<?> targetClass) {

		// This is somewhat tricky... We have to process introductions first,
		// but we need to preserve order in the ultimate list.
		AdvisorAdapterRegistry registry = GlobalAdvisorAdapterRegistry.getInstance();
		Advisor[] advisors = config.getAdvisors();
		List<Object> interceptorList = new ArrayList<>(advisors.length);
		Class<?> actualClass = (targetClass != null ? targetClass : method.getDeclaringClass());
		Boolean hasIntroductions = null;

		for (Advisor advisor : advisors) {
			if (advisor instanceof PointcutAdvisor) {
				// Add it conditionally.
				PointcutAdvisor pointcutAdvisor = (PointcutAdvisor) advisor;
				if (config.isPreFiltered() || pointcutAdvisor.getPointcut().getClassFilter().matches(actualClass)) {
					MethodMatcher mm = pointcutAdvisor.getPointcut().getMethodMatcher();
					boolean match;
					if (mm instanceof IntroductionAwareMethodMatcher) {
						if (hasIntroductions == null) {
							hasIntroductions = hasMatchingIntroductions(advisors, actualClass);
						}
						match = ((IntroductionAwareMethodMatcher) mm).matches(method, actualClass, hasIntroductions);
					}
					else {
						match = mm.matches(method, actualClass);
					}
					if (match) {
						MethodInterceptor[] interceptors = registry.getInterceptors(advisor);
						if (mm.isRuntime()) {
							// Creating a new object instance in the getInterceptors() method
							// isn't a problem as we normally cache created chains.
							for (MethodInterceptor interceptor : interceptors) {
								interceptorList.add(new InterceptorAndDynamicMethodMatcher(interceptor, mm));
							}
						}
						else {
							interceptorList.addAll(Arrays.asList(interceptors));
						}
					}
				}
			}
			else if (advisor instanceof IntroductionAdvisor) {
				IntroductionAdvisor ia = (IntroductionAdvisor) advisor;
				if (config.isPreFiltered() || ia.getClassFilter().matches(actualClass)) {
					Interceptor[] interceptors = registry.getInterceptors(advisor);
					interceptorList.addAll(Arrays.asList(interceptors));
				}
			}
			else {
				Interceptor[] interceptors = registry.getInterceptors(advisor);
				interceptorList.addAll(Arrays.asList(interceptors));
			}
		}

		return interceptorList;
	}

可以看到该方法最终会返回interceptorList，关键在于中间的逻辑是怎么添加的，可以很明显地观察到下面两个分支(else if和else)最后的interceptorList由两步组成：

1
2
Interceptor[] interceptors = registry.getInterceptors(advisor);
				interceptorList.addAll(Arrays.asList(interceptors));

上面的if条件虽然复杂，但是不难看出这个list都是添加至interceptors(或者interceptors中的元素)，而interceptors是registry.getInterceptors(advisor)添加的

因此上面的方法简化之后可以看作均进入了上面提及的这两步：

1
2
Interceptor[] interceptors = registry.getInterceptors(advisor);
				interceptorList.addAll(Arrays.asList(interceptors));

因此分析registry的获取方法：

1
AdvisorAdapterRegistry registry = GlobalAdvisorAdapterRegistry.getInstance();

因此registry.getInterceptors变成了DefaultAdvisorAdapterRegistry.getInterceptors。跟进DefaultAdvisorAdapterRegistry类，查看它的getInterceptors函数：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@Override
	public MethodInterceptor[] getInterceptors(Advisor advisor) throws UnknownAdviceTypeException {
		List<MethodInterceptor> interceptors = new ArrayList<>(3);
		Advice advice = advisor.getAdvice();
		if (advice instanceof MethodInterceptor) {
			interceptors.add((MethodInterceptor) advice);
		}
		for (AdvisorAdapter adapter : this.adapters) {
			if (adapter.supportsAdvice(advice)) {
				interceptors.add(adapter.getInterceptor(advisor));
			}
		}
		if (interceptors.isEmpty()) {
			throw new UnknownAdviceTypeException(advisor.getAdvice());
		}
		return interceptors.toArray(new MethodInterceptor[0]);
	}

可以发现只要advice是MethodInterceptor的实例的话就会将它加入到interceptors，然后返回。通过此处可以控制我们的chain了。但是我们需要的public class AspectJAroundAdvice extends AbstractAspectJAdvice implements MethodInterceptor, Serializable很明显只实现了MethodInterceptor，没有实现advice(Advice advice = advisor.getAdvice();这一步需要它首先是一个Advice)

因此此处可以通过JdkDynamicAopProxy来代理这个Advice类，并且设置反射调用对象是AspectJAroundAdvice即可。

要触发代理，这里选择用BadAttributeValueException触发toString然后触发代理方法即可

payload

由于最后是通过反射调用任意方法，因此可以使用templatesImpl.newTransform来实现加载字节码从而调用任意方法。

https://github.com/Ape1ron/SpringAopInDeserializationDemo1

本作品采用 知识共享署名-相同方式共享 4.0 国际许可协议 进行许可
